BP17 — INFRARED NON-CONTACT PYROMETER 10:1 VISUAL AND ACOUSTIC SIGNALS -58 TO 716 °F

    USD $ 68.18 USD $ 68.18 68.18 USD

    USD $ 62.98

    This combination does not exist.

    Add to Cart Buy Now
    Actualizado a 12/04/2024 en la página web.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    PYROMETER BP17

    Infrared thermometer for non-contact surface temperature measurement




    Red if the limit value is exceeded

    The reference value is 30 °C and the sensitivity level is 5 °C. Therefore, a measured temperature is within the tolerance range when it is between 25 °C and 35 °C. However, if the surface temperature of the measured material is above the maximum value of 35 °C, the display is lit red and you'll hear an acoustic signal at short intervals.

    With the BP17 you can continuously keep an eye on whether the actual values comply with the temperature range you have specified without having to observe the exact values all the time.

    Precise measuring results at the touch of a button

    Whether we're talking about the commercial sector or the hobby sector − monitoring the surface temperature of electric devices, motors, cooling systems or walls is an important issue with regard to the subject of energy efficiency. Continuous temperature measurement can often already avoid greater damage and costly remediation work beforehand. As you do not have to touch the surfaces which might be too hot or cold, you always play it safe when carrying out measurements with infrared radiation.

    With the pyrometer BP17, a reliable and precise surface thermometer is provided to you. Its infrared sensor supplies exact measuring results to you within a large temperature range from -50 °C to +380 °C. You can define a reference temperature beforehand, and possible deviations can be indicated by means of both visual and acoustical alarm signals. When setting the tolerance range, you can choose between 1 °C, 3 °C and 5 °C. In order to be really sure that you're actually recording the current temperature of the measured material when you carry out a non-contact surface measurement from the distance, and not a value from the environment, the pyrometer BP17 is equipped with a target laser which indicates the centre of the measured surface (optical resolution 10:1). In doing this, please note that the measured surface, i.e. the area in which the temperature values are recorded, is increased with an increasing distance.

    The large, backlit display guarantees an excellent view of the measured values, even with poor light conditions, and the modern, ergonomic gun-style design allows for comfortable and fatigue-free handling. Convenient: The battery-powered measuring device switches off automatically when it is not used and thus reduces its already low power consumption. With the handy belt pouch, you can wear the pyrometer conveniently on your body and always have it at hand.

    A variety of applications

    A pyrometer can be used for checking the heat generated whilst the electrical devices are running permanently. Since the measurement result is at hand in a matter of seconds, temperature measurements can also easily be performed on moving objects. Where the subject of energy saving is concerned, you are furthermore provided with valuable information by checking windows, exterior walls and ceilings with regard to their thermal insulation properties. Further applications are for instance the monitoring of the motor and tire temperature of vehicles or motorcycles, the functional test of underfloor heating systems, or simply the temperature measurement of baby's feeding bottle or of the wine bottle. And in combination with a hygrometer for measuring the air humidity, you can quickly determine whether and where there are cold corners in your home, which pose an increased risk of a temperature drop below the dew point and therefore of mould formation by condensation water.

    Visual and acoustic signals

    If you want to check specific measurement values at regular intervals, you can preselect a reference temperature for this purpose and set tolerance thresholds from 1 °C, 3 °C or 5 °C. If the temperature value measured is outside the limit values, this is shown in the display with different colours and additionally is indicated acoustically by means of a signal tone.

    Green if the tolerance value is maintained

    You have specified a reference value of 25 °C and set a threshold value of 1 °C. If the surface temperature measured is between 24 °C and 26 °C − i.e. within the tolerance range, the display lights up green.

    Blue if the threshold value is not reached

    The reference value preselected is 20 °C and the tolerance limit selected is +/- 3 °C. If the temperature measured were between 17 °C and 23 °C, therefore everything would be okay. However, if the measured value is below 17 °C, the display is lit blue and in addition you'll hear a signal at long intervals.



               With the BP17 you can continuously keep an eye on whether the actual values comply             with the temperature range you have specified without having to observe the exact                   values all the time.

    Datasheet:

    Operating manual:



    A few practical benefits:

    • Non-contact surface temperature measurement from -50 °C to +380 °C

    • Acoustic and visual alarm when exceeding/falling below a preselectable temperature difference

    • Adjustable sensitivity levels: OFF / 1 °C / 3 °C / 5 °C

    • Measuring optics 10:1

    • Selectable visual targeting laser

    • Backlit display

    • Auto-power-off function and battery status indicator

    • Development, design, production: 100 % Trotec

    • Practice-optimized German industrial design – protected design patent

    • Optimum value-for-money ratio

    The pyrometer BP17 convinces to the last detail

    BP17 - dimensions
    Compact dimensions and excellent handling characteristics – the pyrometer BP17 is your practical aid for fast and reliable surface temperature measurements.

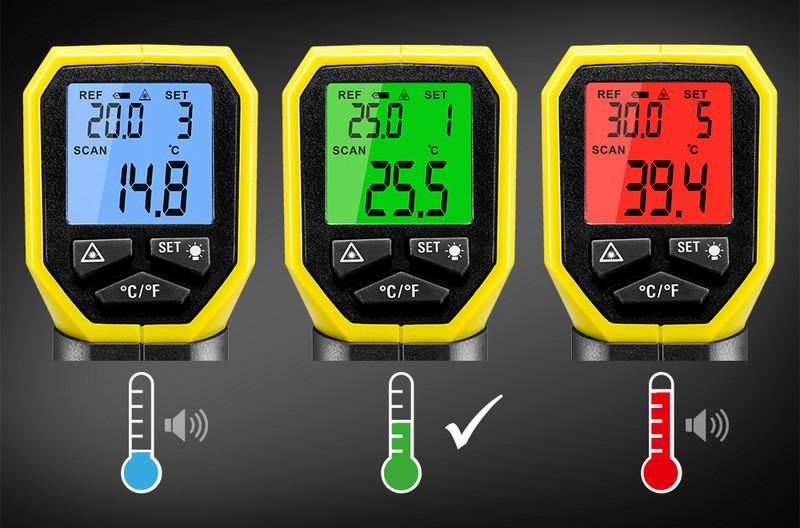

    BP17 - visual alarm
    Exceeding or falling below a preselected threshold is indicated by an acoustic and visual alarm function. If the threshold is exceeded, the display lights up red, if the value falls below the threshold, it lights up blue. If the current value is within the threshold range, the display lights up green.
    BP17 – Trotec design
    Development, design, production – 100 % Trotec. The high-quality BP17 supplied in the distinctive Trotec industrial design impresses with a decided use of forms and a high degree of functionality.
    BP17 - battery compartment
    The power supply of the BP17 is cordless via the 9V monobloc battery included. The current power level is indicated on the display. And for a particularly long battery runtime the BP17 is automatically switched off in case of non-use.

    Simply practical for commercial applications or use at home

    BP17 – deep-freeze warehouse
    Use the pyrometer BP17 in cold-storage rooms and deep-freeze warehouses to check quickly and easily whether the goods stored are still provided with the temperature range specified. This is perfect, for instance, for the gastronomy sector, logistics companies and commercial enterprises.
    BP17 – pipes and systems
    With hot pipes, tanks, boilers, motors or housings it is safer to carry out a non-contact measurement of the surface temperature first before you accidentally burn your hands.
    BP17 – terminal box
    Check the heat development of terminal boxes, electrical devices, generators or transformer housings. Use the BP17 to check quickly and reliably whether devices are overheating.
    BP17 – flat
    Detect cold walls, cold corners or thermal bridge in your flat, in the cellar, in the office or in your holiday home at different times of day and year. These places are susceptible to the formation of mould.

    TECHNICAL DATA
    General information
     Article number3.510.003.029
    Optics
     Optical resolution (D:S)10:1
     Smallest measuring spotØ 12.7 mm (Distance 127 mm)
    Infrared temperature sensor [°C]
     Min. measuring range | Infrared temperature sensor [°C]-50
     Max. measuring range | Infrared temperature sensor [°C]380
     Max. accuracy [°C] | Infrared temperature sensor±2 °C / ±2 % (at > 0 °C)
    ±3 °C (at ≤ 0 °C)
    Infrared temperature sensor [°F]
     Min. measuring range | Infrared temperature sensor [°F]-58
     Max. measuring range | Infrared temperature sensor [°F]716
    Ambient conditions
     Operation - min. temperature [°C]0
     Operation - max. temperature [°C]50
     Operation – min. relative humidity [% RH]10
     Operation - max. relative humidity (non-condensing) [%]90
     Storage - min. temperature [°C]-10
     Storage - min. temperature [°F]-4
     Storage - max. temperature [°C]60
     Storage - max. temperature [°F]140
     Storage - max. relative humidity (non-condensing) [%]80
    Display
     LCD
     Functional LEDs
    Device control
     Keys
    Temperature sensor
     Response time< 0.5 s
     Spectral sensitivity8 - 14 µm
    Laser (target display)
     Class2
     Wavelength [nm]630-660 nm
    Power supply
     Internal (battery)1 x 9 V battery
    Housing design
     Plastics
    Dimensions
     Length (packaging excluded) [mm]130
     Width (packaging excluded) [mm]45
     Height (packaging excluded) [mm]149
    Weight
     (packaging excluded) [kg]0.19
    STANDARD SCOPE OF DELIVERY
    Standard scope of delivery
     Measuring device
     Battery(-ies)
     Bag/holster
     Operating manual
    ASCERTAINABLE MEASURED VALUES AND FUNCTIONS
    Functions and features
     Material/surface temperature [°C]
     Material/surface temperature [°F]
    Internal sensors
     Switching function °C/°F
     Automatic switch-off
     Backlit display
     Selectable single laser pointer
     Visual signal transmitter
     Acoustic signal transmitter
     Automatic reference temperature
     Battery status indication
