BB20 — LAYER THICKNESS MEASURING DEVICE FERROUS AND NON-FERROUS METALS | RANGE 0 to 1250 µm | STORAGE UP TO 400 VALUES
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Datasheet:
- Dual sensor for measuring the thickness of non-magnetic layers on magnetic and non-magnetic metals
- Wide measuring range between 0 µm and 1,250 µm
- Spring-loaded measuring head
- V-groove for curve measurement
- Alarm function when predefined thickness thresholds have been exceeded.
- Various statistical functions such as maximum, minimum and average layer thickness
- Two-point calibration for high accuracy
- Memory for up to 400 measurement values
- USB port for data transfer to PC
- Simple one hand operation
- Backlit display
- automatic disconnection
- Optimal value for money

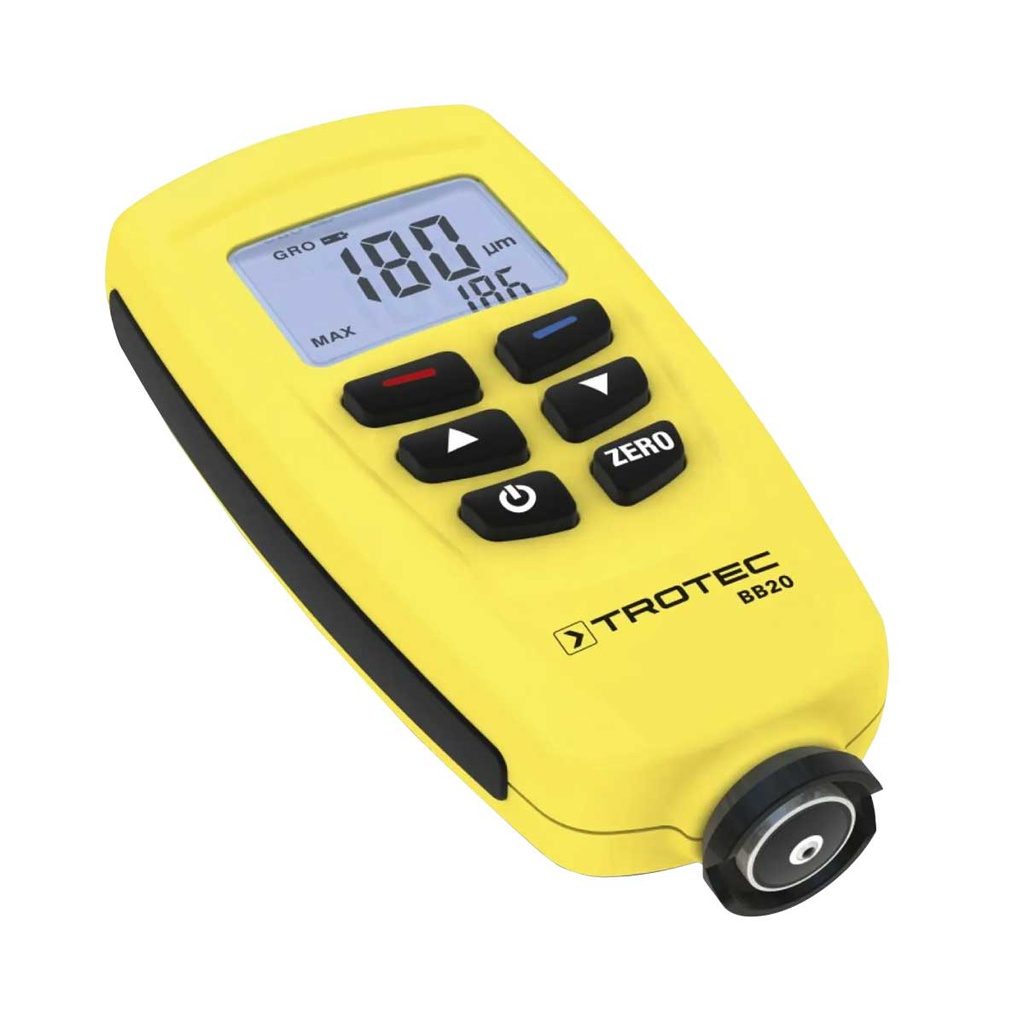

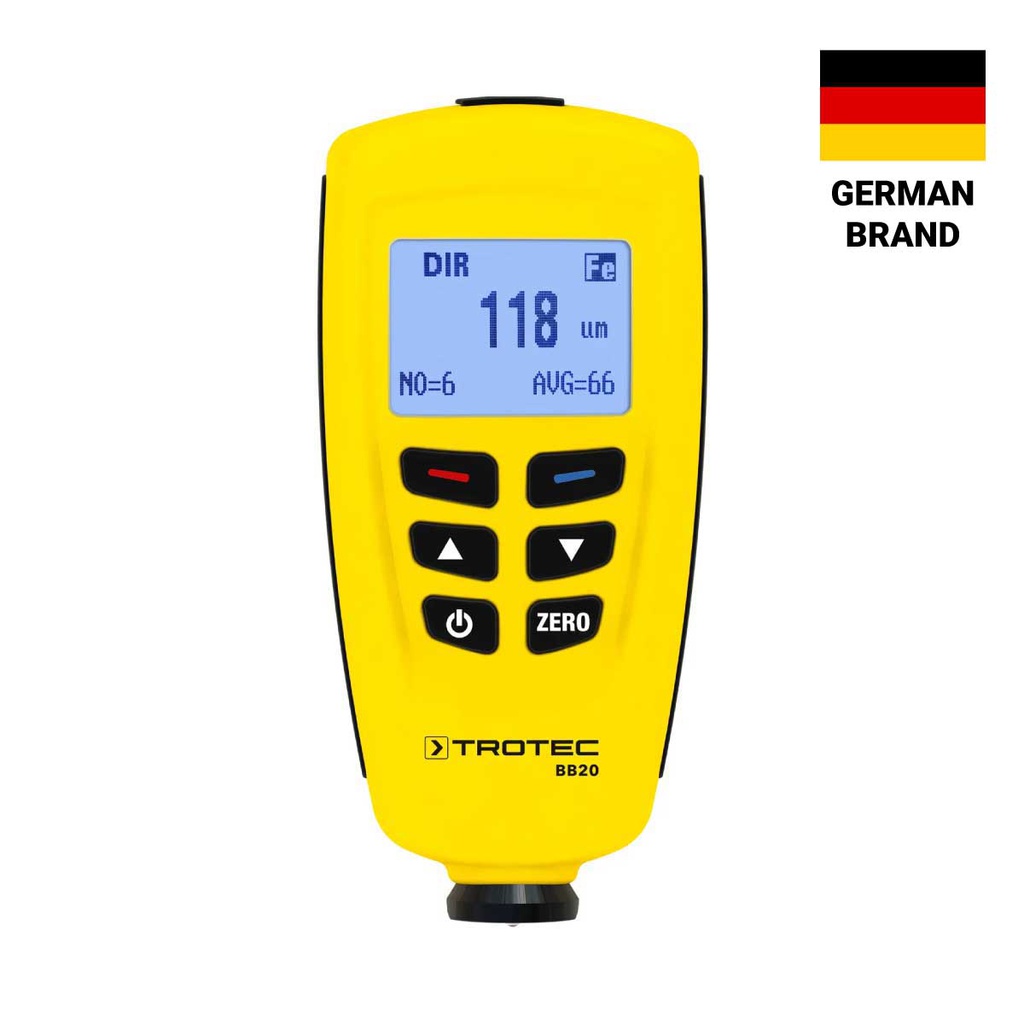

BB20 LAYER THICKNESS GAUGE
Quick measurement of car paint layer thickness and other coatings
Thanks to its innovative dual sensor, the BB20 can measure the thickness of non-magnetic layers such as paints, lacquers, synthetic coatings, galvanized, enamels or chrome. Both on iron or steel and on non-ferrous metals, such as aluminum, magnesium, titanium, etc.

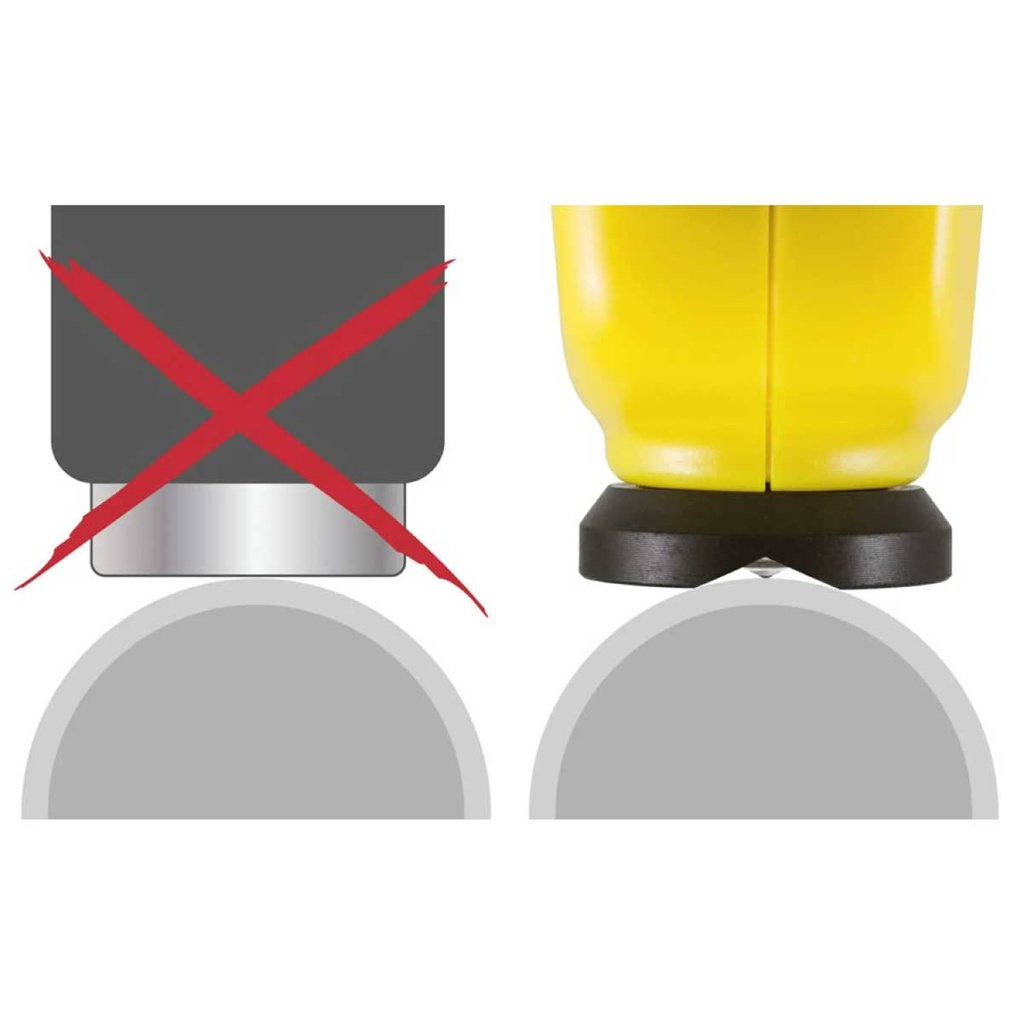

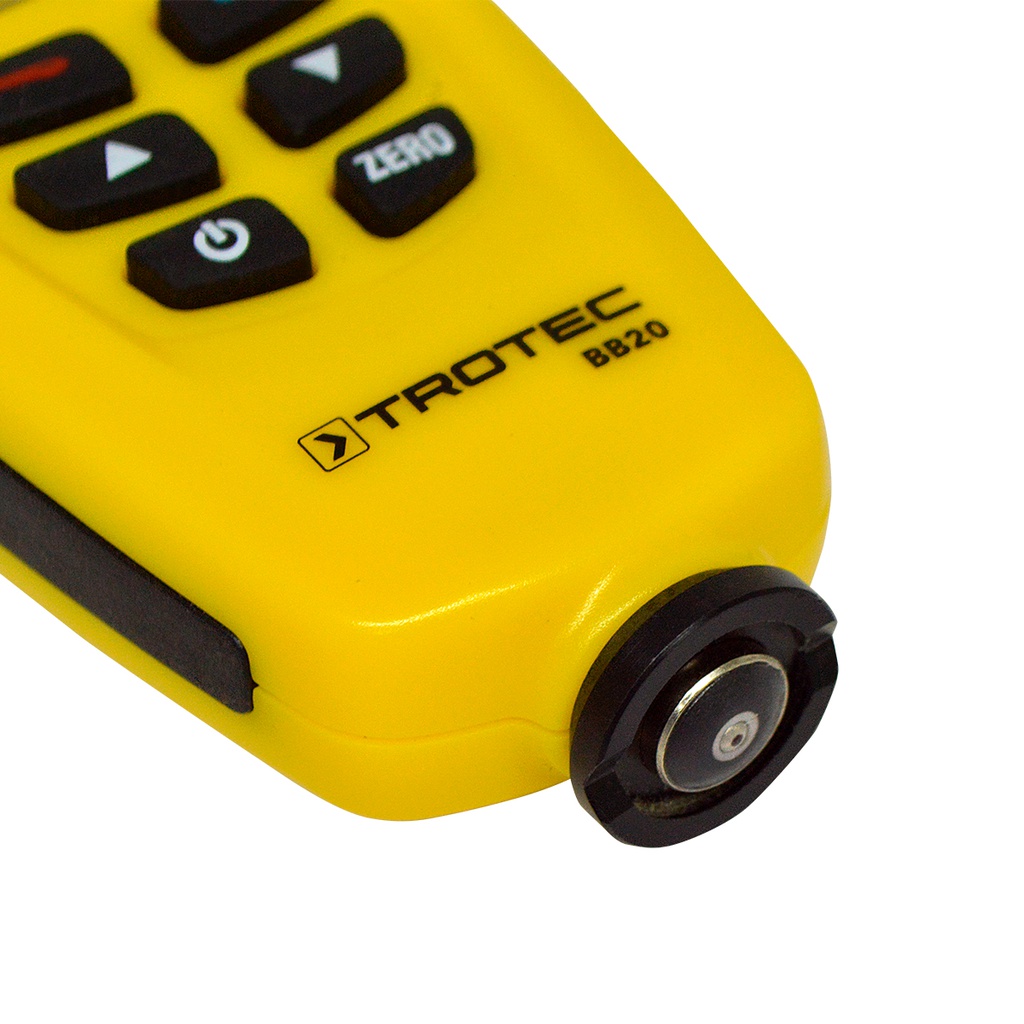

The measuring head is spring-mounted and features a practical V-groove. This makes it easier to carry out measurements on rounded objects, such as shafts or hinges, and prevents vibrations that may affect measurement results.
The meter can be used comfortably with one hand, it convinces by the wide range it covers. Between 0 and 1,250 µm and ensures accurate results in any situation with the additional display of useful statistics and a handy alarm function that alerts the user when pre-defined thickness thresholds have been exceeded.
The characteristics of professional equipment make the BB20 an indispensable aid in the automotive sector, for example for paint control measurement or the detection of painted surfaces after accident damage – but also for universal paint check. painting of railings or boats or other types of protective coatings.
Measuring range: 0 - 1250 µm
Materials: Ferromagnetic Soils, Non-Ferrous Metal Soils (NF)
